Construction Material I Beam Steel Weight 17 - 35kg Under Multiple Conditions

Name: Construction Material I Beam Steel Weight 17 35kg Under Multiple Conditions
Brand: Helei
Price: 1 USD

China Construction Material I Beam Steel Weight 17 - 35kg Under Multiple Conditions wholesale

Brand Name : Helei

Model Number : JH117, 9# 11# 12#

Place of Origin : Handan

MOQ : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 8000 ton/month

Delivery Time : 5-8 workdays

Packaging Details : Standard export packing or as client's requirement'

weight : 17-35kg

web thickness : 8-11mm

Certificate : ISO9001/SGS/BV

Application : Bridges

Name : steel i beam

Contact Now

China Steel I-Beam Manufacturers Construction Meterial I Beam Cheapest Price

Specification

Hot rolled steel i beam can be used in mine road support. In order to avoid or minimize the chance of mine roadway collapsing,mine support products are necessary. And with the i beam support , it can obviously improve the level of safty in the tunnel. The steel i beam can be used under multiple conditions ,fractured road or road with gravel,clay ,silt . Use the i beam accessories accordingly, you can get the most safe work environmet in the tunnel under many circumstances.

Crane Rail
Size: 9#,11#,12#
Length: 8m, 9m, 10m
Material: 16Mn, 20Mnk, Q275, Q275B, Q235
Standard: YB/T5047-2000

Technical Parameter

I beam standard :YB/T5047-2000
SIZE (Kg/M)		Quantity range(kg)	DIMENSION (MM)			Piece/set
SIZE (Kg/M)		Quantity range(kg)	HEIGHT	BASE	WEB	Piece/set
9#	16.9	17.1-17.4	90.00	76.0	8.0	28
11#	22.2	22-22.3	110.00	89.0	8.2	18
	23.2	23.0-23.4	110.00	89.0	8.8
	24.7	24.5-24.8	110.00	90.0	9.0
12#	29.2	29.0-29.3	120.00	95.00	11.0

Construction Material I Beam Steel Weight 17 - 35kg Under Multiple Conditions

Application
Mine road support, and other mine usage

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:

Contact

Contact Person:Jack
Handan Jinghao Chemical Co., Ltd.
Room 3003,Unit 3,A Rongfu Center,No 179,Renhe Street,Congtai District, Handan, Hebei, China (Mainland)
E-mail:dong at hdjh88.com
Tel:+86-18830894446.
Skype:live:yuanll871213

Product Tags:

load bearing steel beam

standard i beam

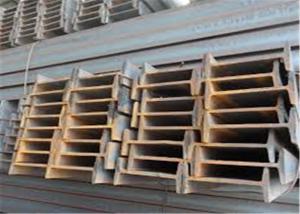

Construction Material I Beam Steel Weight 17 - 35kg Under Multiple Conditions Images
